SUPER-AIRTIGHT

High Speed Door
Airtightness of MONBAN is achieved three times as the pipeless sheet shutter. High airtightness of wind-proof pipe-style sheet shutter "Airtight shutter"

Newly designed airtight structure prevents air inflow from the roller box and the side frames when the sheet is closed. Moreover, because it prevents also invasion of dust and insects, the inside factory can be kept clean. [Order specification] (PAT.P)

Airflow Quantity of pressure difference of10Pa(m3/h・m2)

The above examination was executed at the airtight examination facilities in our company according to JIS A1516. The numerical value is measurements of the KV10 type.




REDUCTION OF CO2

Reduction of CO2, Prevent of global warming. MONBAN original ecosystem makes opening and closing efficient.

Ecomode
Eco Mode is the energy-saving operation mode that is opening and closing according to the height of the passing things. Efficient opening and closing are achieved by shortening opening time

Efficient operation is made possible by installing the sensors or switches for the pedestrian and for the vehicle.	Switch to Eco Mode (Controller part)	ECO Level Position (Frame Parts)

Countdown display Built-in Obstacle Detector Sensor
The countdown monitor with high visibility is useful for the prevention of the running accident. The obstacle detection sensor built in front and behind the frame is useful for the prevention of contact by certain detection of the objects.

The countdown monitor cannot be used for the three-phase circuit 200V specification.

countdown monitor [Order specification]		Obstacle detection sensors are built in
The descent beginning is counting down displayed. There are a burial and both bigness and smallness two kind exposure sizes. It installs it in 2000milli in height position for the frame burial type. Please specify the number and the installation position		Optical axes are arranged in front and behind the sheet.

Operation Monitor
The operation monitor function which can check opening and closing frequency at any period and the input display function which displays the signal from the machines are installed. They can be used for the improvement of the production line and energy-saving.

Operation monitor		Input state display
The display on the operation monitor can be switched by pushing one button and easily reset.		The input from the equipment can be displayed and checked.

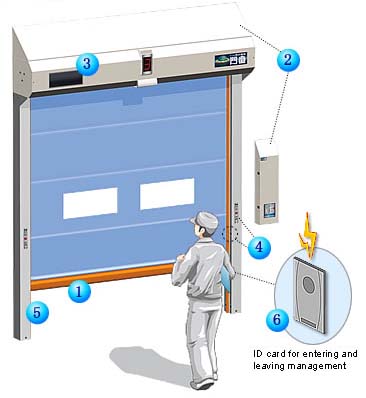

CLEANNESS - CLEAN STRUCTURE FOR GOOD SANITATION

The following 1-6 of clean designs are order specifications. Incasse of only frames are made of stainless steel, the roller box is made of normal steel.

1) Sheet Cleanness can be kept by the fluoroplastics-precessed sheet which prevents the adhesion such as dust. Replacement of the bottom sheet is easy in case of dirt or damage by its detaching structure. 2) Inclination Cover The inclination cover can be attached on the upper part of the roller box and the controller. You can check dirt and clean easily. 3) "Looking-Into Window" Inside of the roller box can be seen You can check dirt inside of the roller box through the 'Looking-into window' [Order specification]		4) Built-in switch sensor You can check dirt inside of the roller box through the 'Looking-into window' [Order specification] 5) Frame made of stainless Steel - Resin Guide The resin guide is adopted as consideration on sanitation. In addition, we prepare for the specifications of 'all parts made of stainless steel' and 'only frames mede of stainless steel'. 6) Passage management System This is the system which records passage of the shutter. It cuts the unnecessary opening time and contributes to security.

CORPORATE VIDEO

* Enlarge video

SUPER-DURABILITY

Smooth operation can prevent the sheet from being worn out and broken, Noncontact structure of the sheet.

The resin guide does not come in contact with the sheet when opening and closing by installing the rollers in both ends of the sheet.This structure prevents wear-out of the sheet and decrease in the arrtight degrees, and the sheet longevity improves rapidly. Moreover, the shutter can be smoothly operated even in the area of air pressure difference, because the friction by operation is a little. (PAT.P)



FOR SAFETY USE

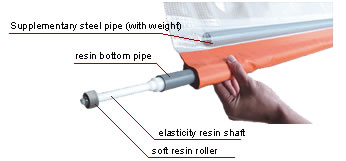

Light and a breakage prevention "Light Bottom Structure" The bottom part is greatly lightened by combining the resin bottom pipe and the supplementary steel pipe. That can soften the impact when contacting and prevent the damage of the pipes and frames. (PAT.P)

"Elastic Structure" Which prevent the damage of the bottom pipe
When coming in contact with the bottom pipe, the resin roller units at the ends of the pipe and the resin bottom pipe absorb the shock and prevent the damages of the pipes and frames. The shaft of the roller unit might break according to the situation of contact. Please confirm the shutter has opened completely when you pass

"Safety Window" For the prevention of accidents on the gateway

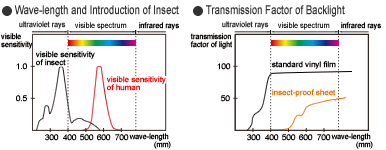

Safety window can make you confirm outside when the shutter is closed completely. That leads to the prevention of the accident, and it is useful as the window for taking in light from outside. We prepare for the insecticide window specification. (order specification)

		In case of 4000mm width of shutter, an space between windows: 300mm The height of windows of KV/WV series of MONBAN: KV25-50: 500mm WV30: 180mm WV40: 300mm
		Prompt correspondence can be done in case of a power failure. Tool-free lock plate The lock plate used for the passage securing when the shutter cannot be operated in case of the sudden accident such as a power failure is a tool-free structure only hanging the bottom pipe on it. No need to work on the high place, you can make a gateway space immediately in case of a power failure.

ENERGY-SAVING

Cut down of air-conditioning and lighting expenses improve efficiency of equipment

High-speed operation of opening 2m/sec(KV10) High-speed operation of opening 2m/sec is achieved by the engine and the controller developed only for the sheet shutter.This high speed operation and the Eco mode cut the opening time of the gateway

Improve the air-conditioning efficiency by interlock operation The interlock function is standard equipped, which suppress the inflow of air when opening and closing.It supports creating the clean environment. 'Smart-interlock' corresponding to the space-saving front room can be selected.

when the steel shutter is closed		when MONBAN is closed		Lightning sheet Because the sheet is well-lit, the room can be kept light when the shutter is closed, and you can save lighting expenses.

Interlock with equipments The interlock function is standard equipped, which suppress the inflow of air when opening and closing. It supports creating the clean environment. 'Smart-interlock' corresponding to the space-saving front room can be selected.

ENERGY-SAVING

Roller Shutter Door
Machine, metal, distribution, warehouse, medicine, and resin.
Using Example of food, print, and precision instrument factories

Installation at product carrying gate	Installation at raw material carrying gate
Indoor partition (all parts of stainless steel specification)	Installation to material carrying entrance (large-scale opening)
product shipment entrance	Partition in factories
